Turning A $20 Craigslist Purchase Into A 500MHz Gaming Powerhouse
Last year I picked up a couple of computers as part of a Craigslist purchase from a local seller. One the computers cost $20 and was described by the seller as "nothing special". It had a PC Chips M572 motherboard with an i430TX chipset, Pentium 133MHz CPU, 40MB of ram, 40GB hard drive, 1.44MB 3.5 floppy drive, DVD drive, 8MB ATI RageXL PCI video card and a low end Ensoniq PCI sound card. I was originally going to take the motherboard out, but there was something about that motherboard that I remembered it could be upgraded with a much better CPU. I checked online and there was indeed a patched BIOS available to allow for the use of a K6-2+ or K6-III+ CPU. I download the patched BIOS and applied the BIOS update to the motherboard. The M572 motherboard has PnP CPU setup in the BIOS. There are no jumpers to set. This makes for easy changes to the motherboard. You can set the voltage from 2.0 to 3.5 volts, FSB speed of 60, 66, 75, or 83 MHz and CPU multiplier of 1.5 to 5.5.
I set to work to upgrade the computer
and start the transformation. First up was a K6-III+ CPU. The K6-III+ CPU maps
a multiplier of 2.0 to 6.0. This allows for 6.0x83MHz FSB or 500MHz clock
speed. I decided to try for the maximum possible clock speed even though 83MHz can cause some issues with addon cards and peripherals. Luckily, I did
not run into any. The motherboard can use 4x72-pin SIMMs or 2x168-pin SDRAM DIMMs. I
installed 2x128MB SDRAM DIMMs for a total 256MB, which is the maximum allowed
on this motherboard. The one negative aspect of the Intel i430 chipset is that
the L2 motherboard cache can only address the first 64MB of ram. This means
the other 192MB would not be cached and cause performance problems. Luckily the
K6-III+ has an onboard 256K L2 cache of its own that covers all of your
available memory. This in turns makes the motherboard cache in effect an L3
cache. This makes the use of that K6-III+ highly desirable. I used a 3dfx
Voodoo 3 2000 16MB PCI card. I added active cooling and was able to overclock it
from 143MHz to 166MHz. Putting it at the same speed as a Voodoo 3 3000. I then
installed a Sound Blaster AWE64 Value model CT4380 with a SIMMCONN adapter to
allow for use of a 32MB 72-pin SIMM, giving 28MB of sound font memory. For
networking I went with an Intel PRO1000/GT PCI network adapter. Finally, I
installed a CompactFlash to IDE adapter with an 8GB CompactFlash card running
Windows 98 SE.

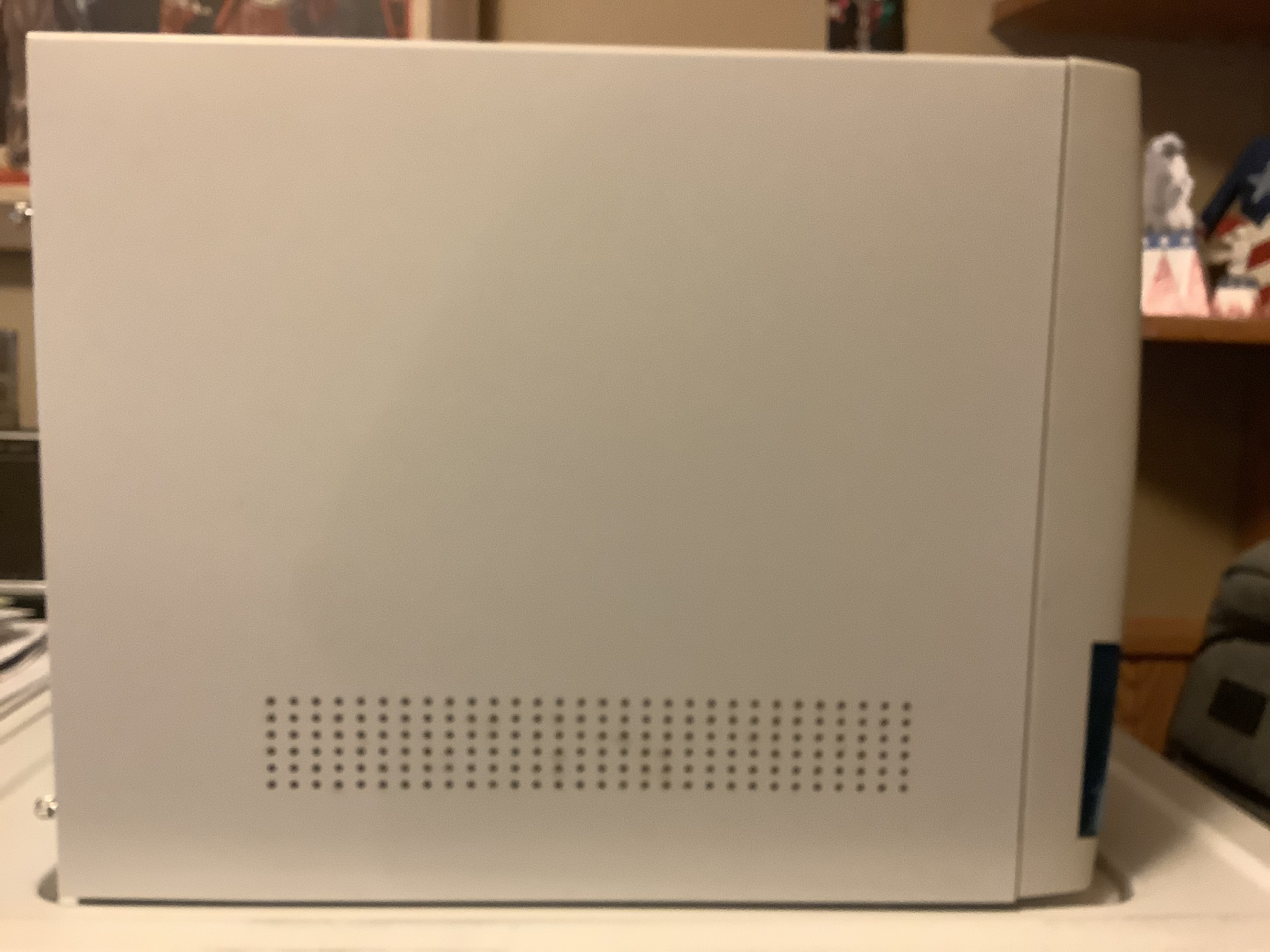

Cool build, J! That case is in really good shape, did you have to spend alot of time cleaning it?
